Mixtile Hub is a fully functional home automation controller hardware platform. It has multiple wireless transceivers built-in to cover the most popular home automation protocols among most name-brand companies. A powerful processor with ample storage, dual microphones and a speaker to enable voice assistant function, and Android 7 with Linux container for easier integration.

Technical Specifications

Technical Details

Processor

1.2GHz Quad-Core Cortex™-A7


Storage

8GB eMMC


Built-in Speaker

1 W / 7 Ohm


Built-in Battery

2500mAh Rechargeable Lithium-ion Battery


Adapter

Input: AC 100-240V; 50/60Hz; 0.6A, Output: 5V/2.5A


Communication

IEEE 802.11b/g/n, Zigbee 3.0, Z-Wave Plus, BLE4.0


Memory

1GB DDR3 1333MHz


Dimension

5.5 x 5.5 x 1.1 inches / 140 x 140 x 27 mm


Network Connection

2.4G Wi-Fi/Ethernet


Other

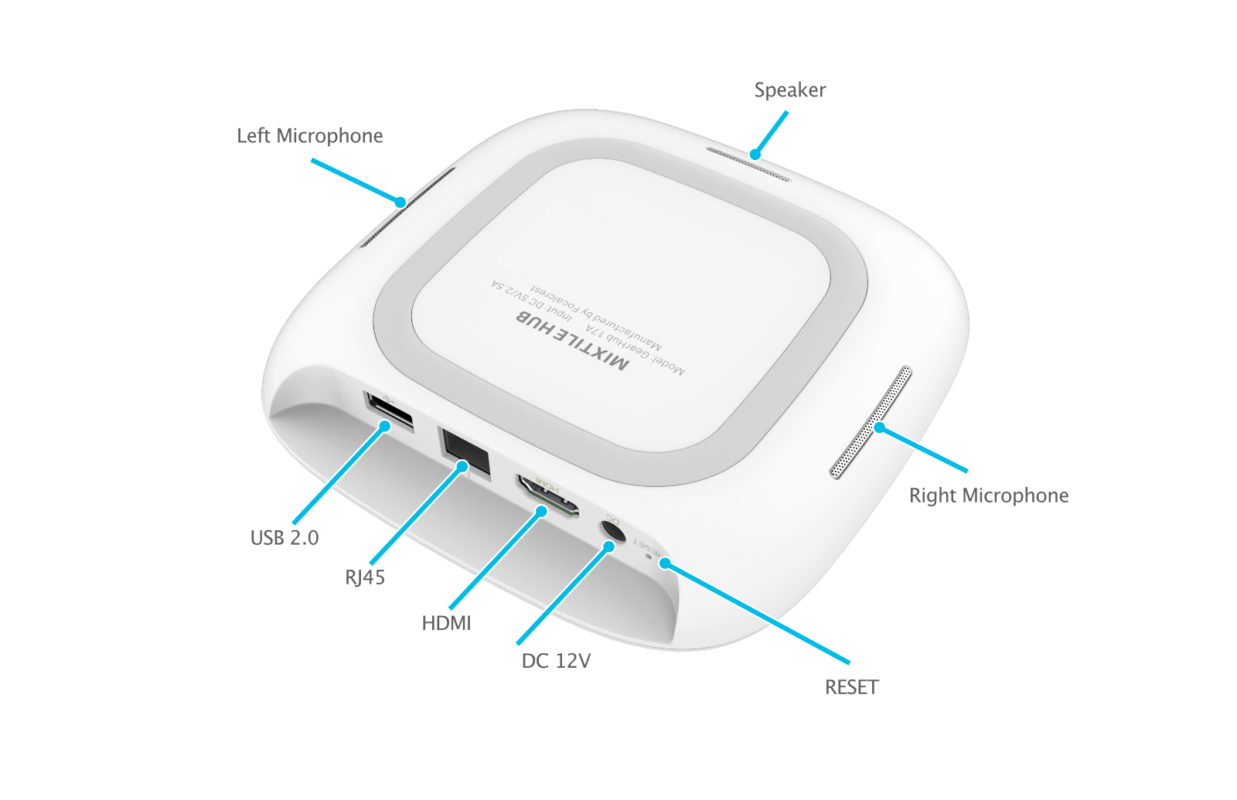

1 x USB 2.0 Port, 1 x Multimedia Out Port, 1 x 100Mb Ethernet Port
