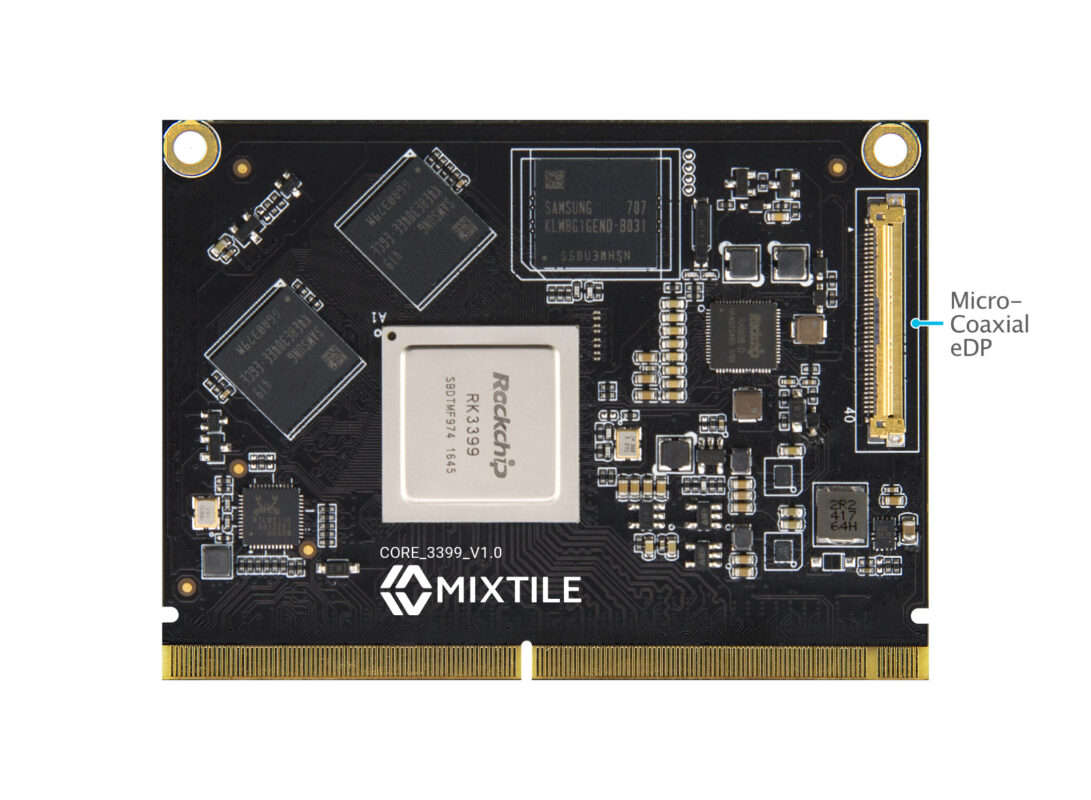

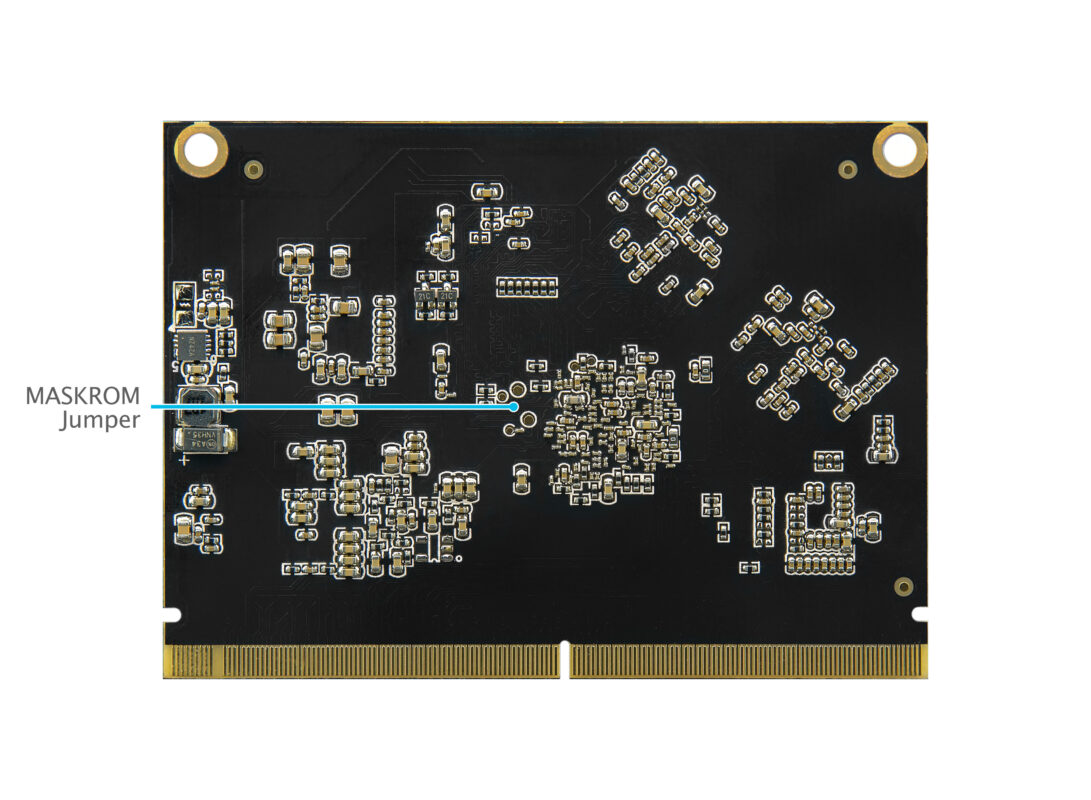

Mixtile System-on-Module, Core 3399E, is designed for supporting multiple applications based on ARM high-performance and low-power processors.

Technical Specifications

Technical Details
  • Rockchip Hexa-core Cortex-A72/A53 SoC processor RK3399
  • Up to 4GB LPDDR3 memory and up to 128GB eMMC storage
  • 2x MIPI-CSI, each with 4 lanes
  • 2x MIPI-DSI each up to 2560×1600@60fps
  • HDMI 2.0 4K@60fps
  • 4-lane eDP 1.3
  • 4-lane PCIe Gen2.1
  • 2x USB 3.0/2.0 dual-role port (Type-C compatible)
  • 1x USB 3.0 host port
  • 2x USB 2.0 host port
  • 3x UART, 7x I2C, 3x SPI, 2x SPDIF, 2x I2S up to 8 channels, 2x SDIO 3.0
  • Up to 90 GPIOs
  • MXM 3 (80 x 60mm)
  • 5-24V DC in, < 7.5 watts
  • 0 to +80°C operating temperature
  • Preload Android 7 with Linux container

Carrier Board

Mixtile Edge is a carrier board for Core 3399E that includes various interfaces and IO, such as 4-lane PCIe, USB, and HDMI. Mixtile provides Edge board samples for evaluating your projects.
