Node-REDでスマートホームシステムを構築



Use the Mixtile Edge 2 Kit as your Smart Home project’s control and monitoring center, efficiently managing data from temperature, humidity, brightness, UV sensors, etc.



このプロジェクトで使用したもの

ハードウェア・コンポーネント


Mixtile Edge 2 Kit ×1        Mixtile 2-in-1 Zigbee & Z-Wave mPCIe Interface Module ×1         Espressif ESP32-C6 ×2

Texas Instruments CC2530 dev board ×3         Tuya temperature sensor ×1         Sonoff button ×1

Texas Instruments CC Debugger ×1         DFRobot Beetle ESP32 C6 Mini ×1         DFRobot FireBeetle 2 ESP32-C6 IoT ×1

DFRobot Fermion: 2.0″ 320×240 IPS TFT LCD Display ×1         Espressif ESP32 Devit1 ×1         Adafruit LTR390 U ×1

DFRobot Gravity: I2C BME280 Environmental Sensor ×1

ソフトウェア・アプリとオンライン・サービス


Debian OS 11 for Mixtile Edge 2 Kit              Node-RED               Mosquitto MQTT Broker

Zigbee2Mqtt Bridg               Arduino IDE               SQLITE               Python3

ストーリー


Short introduction

について Mixtile Edge 2 Kit used as Smart Home center integrates Zigbee technology and machine learning algorithms to automate the home and improve user comfort. The Mixtile Edge 2 acts as a central coordinator of the Zigbee and BLE network, managing data from temperature, humidity, brightness and UV sensors. This data is used not only to intelligently control devices in the home, such as lights and thermostats, but also to provide personalized clothing recommendations based on the weather conditions outside. The system uses a logistic regression model, integrated through Node-RED, to analyze sensor data and generate accurate suggestions, facilitating quick and efficient decisions for the user.

About Mixtile Edge 2 kit:

Mixtile Edge 2 Kit is a high-performance IoT gateway designed specifically for industry applications. More details about this device here.

Most important specifications:

– processor Rockchip RK3568, an quad-core processor (4xCortex A55);

– support NPU (Neural Processing Unit);

– maximum RAM memory support is 2/4GB RAM LPDDR4x, enough for video or AI applications;

– support for eMMC (16/32 GB);

– connectivity: USB 3.0, HDMI 2.1, Gigabite Ethernet, WiFi 6. Bluetooth 5.2;

– compatible with Linux (Debian, Ubuntu); also Home Assistant and Android can be installed on this PC.

使い方: Mixtile Edge 2 Kit will be the “heart” of smart home and will act as an control center. Some of the sensors and external devices will use the Zigbee protocol to communicate with Mixtile Edge 2 Kit and other (sensors from weather station) will comunicate via MQTT over WiFi, in local network. External devices connected to Smart home command center will use ESP32-C6 dev boards, because these have Zigbee protocol built-in, CC2530 based dev boards and other devices will be purchased from the market (to test the compatibility with this system).

To achieve this, I will setup this device using the steps below.

1. Install and configure Node-Red and Mosquitto

The Mixtile Edge 2 Kit was come with Debian 11 installed. I have to install and configure Node-Red in order to communicate with some sensors located in my home, using MQTT protocol over WiFi.

A. Install the NodeRed on Mixtile Edge 2 Kit: I used the instructions from this link.

First make sure that Debian package list repository is up to date. to do that, use the following lines:

sudo apt update

sudo apt upgrade -y

Then, install nodejs for Debian (latest version for nodejs is 20, according to this link):

curl -fsSL https://deb.nodesource.com/setup_20.x | sudo bash -

Then, install npm

sudo apt-get install nodejs -y

To verify if the nodejs and npn is installed, use the following commands to verify:

node -v
npm -v

The result from my Mixtile Edge 2 Kit:

nodejs and npm versions

Now we have install Node-Red using the following command:

udo npm install -g --unsafe-perm node-red

Note: after the Node-Red installation, it is possible to see in console an npm notice to update the latest version, using npm install -g npm@version, where version could be 10.8.3

Start Node-Red:

node-red

Node-red started:

1/2 · Node-red in browser

2/2 · Node-red in console

Note: install Node-Red Dashboard module, to create UI instruments and buttons/sliders to interact with IoT devices:

  • go to in Node-Red Menu> Manage Palette; here search for node-red-dashboard and install it. More info here.
  • access Node-Red UI by typing this in browser:
http://localhost:1880/ui --> if Node-Red UI is accessed from Mixtile2 Edge kit
OR
http://mixtile_IP:1880/ui --> if Node-Red is accessed from the same network

To find the Mixtile Edge 2 Kit IP, type this in console:

hostname -I

Mixtile Edge 2 Kit IP

B. Install Mosquitto MQTT broker (link with instructions):

sudo apt install -y mosquitto mosquitto-clients

To make Mosquitto auto-start when Mixtile Edge 2 Kit start, run the following command:

sudo systemctl enable mosquitto.service

Test the installation by running:

sudo systemctl status mosquitto

Now, configure Mosquitto broker to accept remote access to communicate with other IoT devices:

– Run the following command to open the mosquitto.conf file:

sudo nano /etc/mosquitto/mosquitto.conf

– go to on the top on the file and add this line:

per_listener_settings true

– go to at the end of the file and add these lines:

listener 1883
allow_anonymous true
  • press CTRL-X to exit and save the file. Press Y そして 入る
  • restart Mosquitto for the changes to take effect with this command:
sudo systemctl restart mosquitto

– to verify if Mosquitto is running, run the following command:

sudo systemctl status mosquitto

Mosquitto config file modified

Start Node-red using:

node-red

Final: Node-Red working, Mosquitto broker working and display data on Node-Red UI:

Node-red working and display data

: the data sent to Node-Red on Mixtile Edge 2 Kit come from my project https://www.hackster.io/popa-mihai/beaconhome-92ec7d ; this project is used only to test the configuration of whole chain, from distant device (in my case ESP32 reading some BLE beacon sensors) to Node-Red UI. Meanwhile, this project was moved from RPI Zero to Mixtile Edge 2. The change means only replacing the IP address of the RPI Zero with that of the Kixtile Edge 2 Kit in the ESP32 code; see the project lins and code.

2. Install and configure Zigbee2Mqtt

One of the interesting option of Mixtile Edge 2 Kit is the posibility to comunicate with other devices using Zigbee and Z-Wave protocol.

In this project I will use only Zibgee protocol, due to the fact that Zigbee do not need any license, the devices are relatively cheap and can be even created using ESP32-C6 or CC2530 or similar dev boards.

Board used for Zigbee and Z-Wave communication is this one: Mixtile 2-in-1 Zigbee & Z-Wave mPCIe Interface Module. More data about this board here.

This board has an mPCIe interface but communicates with Mixtile Edge 2 Kit through 2 USB ports, creating two serial connections.

To see this USB connection, type this command in console:

ls /dev/ttyACM*

The result should be:

Mixtile 2-in-1 Zigbee and Z-Wave USB connections

Note: ttyACM0 is Z-Wave and ttyACM1 is Zigbee

To establish communication link between Zigbee board and Node-Red, I will use Zigbee2Mqtt bridge. Details for what is and how to configure here.

Now, proceed to install Zigbee2MQTT:

すど ギットクローン https://ジツブドットコム/Koenkk/zigbee2mqtt.git /opt/zigbee2mqtt
cd /userdata/zigbee2mqtt/
すど npm install

Configure Zigbee2Mqtt to use the Zigbee board. To do that, modify the file:

sudo nano /userdata/zigbee2mqtt/data configuration.yaml

In this file, modify the serial port to /dev/ttyACM1 and add adapter type ezsp:

Zigbee2mgtt config file modified

Obs: because the Mosquitto MQTT server and Zigbee2Mqtt run on the same machine, then we will not create, for the moment, user and pass in configuration.yaml file (because Mosquitto accept anonymous connections).

Next, add used to specific groups (after that, restart Mixtile Edge 2 Kit):

すど usermod -a -G uucp $USER
すど usermod -a -G tty $USER
すど usermod -a -G dialout $USER

Start Zigbee2Mqtt:

cd /userdata/zigbee2mqtt/
npm start

The result should look like this:

Zigbee2mgtt started

Now, we continue with connection between Zigbee2Mqtt and Node-Red.

Before configure Node-red to send or receive commands/data to end-devices using Zigbee2Mqtt, We have to activate Zigbee2Mqtt UI. For that, We have to add the following lines to configuration.yaml file:

frontend:
port: 8080

The modification should look lite this:

Zigbee2mgtt UI activation

The modification should look lite this:

Zigbee2mgtt UI in browser

In this stage, the whole chain is set and ready to to be configured with sensors, buttons, out-devices and so on.

3. Connect Zigbee end-devices to Mixtile

For this step, I will use some sensors from the market (for example: Tuya temperature sensor, Sonoff button) and other sensors and devices based on development boards, as ESP32-C6 Zigbee enabled or TI CC2530.

A. First, will proceed to configure End Devices based on ESP32-C6 that will be connected to our Zigbee network; these devices will be flashed with examples provided by ESP32 Arduino library, as following:

  • one will be an temperature sensor (will send data to Node-red) and will be flashed with Zigbee_Temperature_Sensor.ino example file;
  • another one will be an light bulb (will receive data from node-Red) and will be flashed with Zigbee_Light_Bulb.ino example file.

To do this, we have to install Arduino IDE on Mixtile Edge 2 kit (using sudo apt install arduino in Linux CLI) and then will configure for using ESP32 with info from here.

Now, We are ready to flash both ESP32 boards. First, we will flash the temp sensor example. Then, We continue with second board, used as Light Bulb.

Obs: be sure that the settings for boards are following these options:

  • Before Compile/Verify, select the correct board: Tools -> Board.
  • Select the End device Zigbee mode: Tools -> Zigbee mode: Zigbee ED (end device)
  • Select Partition Scheme for Zigbee: Tools -> Partition Scheme: Zigbee 4MB with spiffs
  • Select the COM port: Tools -> Port: xxx where the xxx is the detected COM port.

Details about this here.

1/3 · Temperature sensor example

2/3 · Light Bulb example

3/3 · Flash settings

In this moment we are ready to add these two end devices in Zigbee2Mqtt using Mixtile Edge 2 kit as coordinator.

Start Zigbee2Mqtt (or check if is started already):

cd /userdata/zigbee2mqtt/
npm start

Power up the ESP32-C6 used as temperature sensor and ESp32-C6 used as Light Bulb; go to in browser and open Zigbee2mqtt UI. Here We will find (after few seconds), two devices:

Both ESP32-C6 devices recognized and added in Zigbee2Mqtt

OBS: the IEEE address is unique for each ESP32-C6 chip and act like an MAC address. In Zigbee2mqtt UI is a tab named Friendly name; from here We will give a more friendly name for devices added instead using the MAC address. We can see also the network components and other device properties.

ESP32 Arduino devices named

IMPORTANT: There is something that We have to add in database.db file from /userdata.zigbee2mqtt/data in order to make the example Light_Bulb to work. By default, the Zigbee2mqtt can not read the Zigbee Model and Zigbee manufacturer from theESp32 that act as light Bulb (I assume that the SW installed on ESP32 not sent these info) and We have to add them manually. For that, open the file database.db と

cd /userdata/zigbee2mqtt/data/
sudo nano database.db

and modify the “manufName” and “modelId” the same as for the first End Device, like here:

Light bulb modification in database

This is only available for the example from Arduino IDE used for this test!!!

OBS: after the modification was done in Zigbee2mqtt database, it is necessary to stop and start the Zigbee2mqtt application; for that, use the following commands in cli:

すど systemctl stop zigbee2mqtt --> used to stop application
すど systemctl start zigbee2mqtt --> used to start application

Additional, this can be used to restart the zigbee2mqtt application:

すど systemctl restart zigbee2mqtt

To verify if Zigbee2mqtt is running, type this in cli:

すど systemctl status zigbee2mqtt

In case that Zigbee2mqtt was set to start automatically with the PC and the stop and start commands was used to update the database, then use this to be sure that application will start after these modifications

すど systemctl enable zigbee2mqtt

OBS: I see that the ESP32C6 used with Arduino example for lamp (Zigbee_Light_Bulb.ino) is not very stable in time and, after few hours is not responding to commands; to get back in the network, sometimes I need to reset it but for most of the times I need to delete it from Zigbee network and pair again. I see that the developers of Arduino Zigbee examples used in Arduino IDE will update soon the libraries and examples for ESP32 and, until then, I will use it as it is.

重要: files used to flash an ESP32 with Zigbee bulb and temperature sensor, from Arduino IDE are attached. From what I see, these examples was removed from ESP32 example (from Arduino for ESP32 examples) and will be updated with a new implementation, with new examples; see here the link to github.

B. Connect commercial sensors, Tuya temperature sensors and Sonoff button, to Zigbee2mqtt (follow the instruction from sensor manual); after few seconds after the sensor is powered up, he new entry is displayed in Zigbee2mqtt Devices window:

Tuya sensor in Zigbee2mgtt Sevices window

OBS: before any operation to add new devices in the Zigbee network, the network should be “opened” to add devices; to do that, press on “Permit join” button from Zigbee2mqtt main screen; this operation is also available anytime when will add a new device in the networl:

Activate add in network for Zigbee devices

注: this option, “Permit join” is enabled for a limited period of time (aprox 4.2 minutes):

Timer for “Permit all” option

These two commercial sensors, Tuya and Sonoff, displayed inZigbee2Mqtt Dashboard:

1/2 · Commercial sensors displayed in Dashboard

2/2 · Market sensors

C. Connect end-devices based on CC2530. To do that, I followed indication from this site and I configured three CC2530 Zigbee dev boards as a following: one switch, one lamp and one DHT11 sensor.

To flash the CC2530 Zigbee modules hex files, CC Debuger hardware programmer should be used with specific software from Texas Instruments; see here all details. Files used for configuration and hex files for each module will be find in attachment section.

Connections for CC2530 devices:

  • CC2530 switch: the switch is connected between P07 and GND and control LED is connected bewteeb P10 and GND;
  • CC2530 lamp: the lamp (actually is an green LED) is connected between P07 and GND and control LED is connected bewteen P10 and GNG;
  • CC2530 DHT11 sensor: the sensor is connected to P06, Vcc and GND (from DHT11) to VIN and GNS (from CC2530 board) and control LED is connected bewteen P10 and GND;

OBS: all devices created with CC25320 dev board and this application will be reported in Zigbee2mqtt as connected to power supply instead battery and can not use the low power management; this can be used but only in payd verssion; see details in the application site.

More devices will be added to the Zigbee network during the project.

CC2530 devices

For the moment, my Zigbee network contain 8 devices: 2 buttons, 2 temperature sensors and two lamps. Sonoff button control only ESP32-lamp and CC2530 button control both ESP32-lamp and CC2530_lamp. Of course, this configuration can be easy changed from Node-Red.

The final Zigbee network look like this:

1/3 · Zigbee devices

2/3 · Zigbee map

3/3 · Zigbee logs

4. Connect Node-Red and Zigbee2Mqtt

Information from end-devices are received by the Zigbee2mqtt as following, using topics; below is a log from Zigbee2mqtt where We eill find the broker, topic and parameters::

Info
2024-09-20 20:40:27
z2m:mqtt: MQTT publish: topic 'zigbee2mqtt/Tuya-temp-sensor', payload '{"battery":100,"humidity":26,"humidity_calibration":0,"linkquality":212,"temperature":31.6,"temperature_calibration":0,"temperature_unit":"celsius"}'

 this case mqtt topic is “zigbee2mqtt/Tuya-temp-sensor“; so, this topic should be used in Node-Red to read the data from this end-device:

Confic tpoic from Zigbee2mgtt in Node-Red

注: Mqtt In broker should contain Server settings as localhost:1883, only in case that both Zigbee2mqtt and Node-Red runs on the same machine (this is my case!).

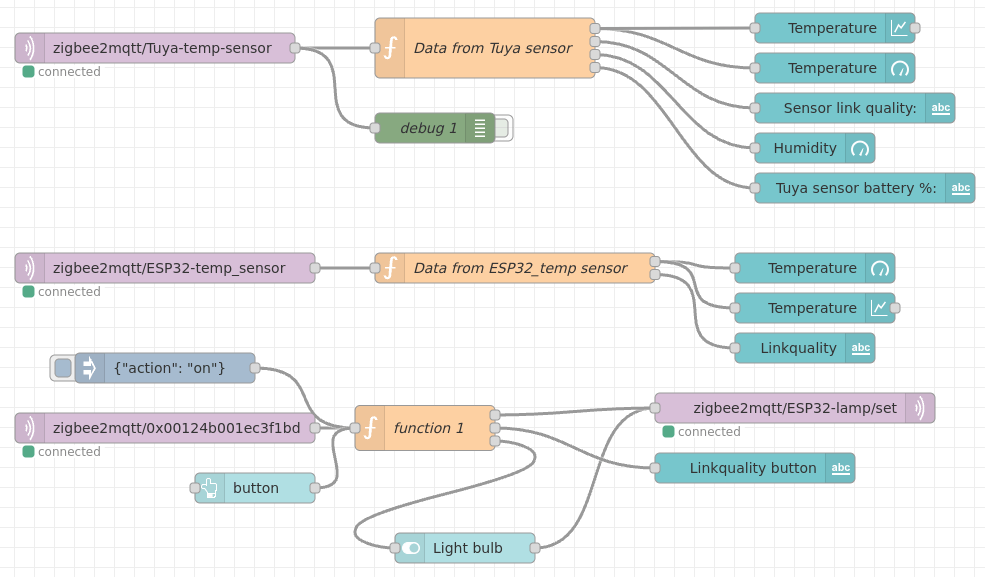

At the end, the Node-Red config and UI should look like this:

1/2 · Node-Red config

2/2 · Node-Red UI

5. Create weather station with prediction

This is the second part of the Smart Home hub: creating a weather station and predicting what clothes and accessories should be worn outside the home, based on the sensor reading.

In order to predict the recommendation for what should I use when I will go outside, I will use a simple machine learning algorithm, called logistic regression model.

The weather station used in this project is based on 2 ESP32-C6 devices connected together through BLE and another ESP32 used to send data to Mixtile Edge 2 Kit. All the data from the sensors will be stored on sql database and ther the ML model will use these data for prediction.

A. Create weather station. To do that, We use the following components to send the sensor data to sql database:

  • Beetle ESP32 C6 Mini: act as BLE server; retrieve data from BME280 and LTR390 sensors and send them to another ESP32, that act as client;
  • FireBeetle ESP32-C6: act as client for BLE server; receive data from external unit, do some calculations and display them on local Fermion: 2.0″ 320×240 IPS TFT LCD Display and send them to another ESP32 that act as a bridge between FireBeetle ESP32-C6 and Mixtile;
  • ESP32 DevKit1 flashed with latest sw from Espresiff that contain support for MQTT and AT commands.

OBS: I used this solution because there was not enough space on Beetle ESP32-C6 or FireBeetle ESP32-C6 for BLE libraries and MQTT libraries. The third ESP32 receive data through Serial2, connect to local WiFi network, create the MQTT packets and send them to Mixtile, all these based on AT commands.

Files used for BLE server and client are available in download section.

Note: for upload the code for BLE server and client use the instruction from manufacturer page (DFRobot).

Schematic of weather station:

Weather station schematic

Working: the external unit will wait until the client (indoor unit) connects and then will start to send the environmental data with a periodicity at 30 seconds. The indoor unit read data, make some calculation and then will update the TFT only if the data from the last reading is changed; this is done to reduce flickering cause of rapidly updating of TFT; moreover, the data used to update the TFT will be sent over WiFi in MQTT format to Mixtile Edge 2 kit. This is done using another ESP32 with AT commands.

B. Create a database for sensor data. For that, I will use SQLite database. To install SQLite, type this in console:

すど apt update
すど apt install sqlite3

To verify if SQLite is installed, type this in console:

sqlite --version

The answer should be like this:

Weather station schematic

Next, create a database used to store the data from weather sensors. In Debian console, type:

cd userdata/sqlite
sqlite3 sensor_data.db

This command will create a database named sensor_data. Now, we will create a table with data; for that, we will use the Debian cli and SQL console to create the table:

mpopa@mixtile:~$ sqlite3 sensor_data.db
SQLite version 3.34.1 2021-01-20 14:10:07
Enter ".help" for usage hints.
sqlite> CREATE TABLE readings (
...> id INTEGER PRIMARY KEY AUTOINCREMENT,
...> temperature REAL,
...> himidity REAL,
...> pressure REAL,
...> ライト REAL,
...> uv_level REAL,
...> timestamp DATETIME default CURRENT_TIMESTAMP
...> );
sqlite>

Verify if the table is created typing “.tables” in above console:

sqlite> .tables
readings
sqlite>

To view all column names from one table, type this in sqlite3 console:

PRAGMA table_info(tabel_name);
my case:
PRAGMA table_info(readings);

The result should look like this:

PRAGMA command

To exit from sql console, type “.end” in sql console:

sqlite> .tables
sqlite> .exit
mpopa@mixtile:~$

Before configure Node-Red to use the database, I will move it to a partition with available space, in my case /home/mpopa/userdata/ and I will change the permissions:

すど mkdir -p /home/mpopa/userdata/sqlite
すど mv /home/mpopa/sensor_data.db /home/mpopa/userdata/sqlite/
すど chown -R mpopa:mpopa /home/mpopa/userdata/sqlite/sensor_data.db
すど chmod 644 /home/mpopa/userdata/sqlite/sensor_data.db

Now, we have the database created.

OBS: I observer that one column name was entered with the wrong name; for that I should enter in sqlite console and sent this command to correct the name:

mpopa@mixtile:~$ sqlite3 sensor_data.db
ALTER TABLE readings RENAME COLUMN himidity TO humidity

OBS: in case there are null records in the database, they can be deleted as follows (where “column_name” can be the name of column; in my case: temperature, humidity,…):

DELETE FROM readings WHERE column_name IS NULL;

If you want to delete all records from the database, use the following command in sqlite console ( this command will delete all records but will keep the index):

DELETE FROM readings;

If you want to delete the recordings and reset the record index, you need to delete the table and then to recreate with the same structure; command to delete the whole table:

DROP TABLE IF exists readings;

If you want to see the data from readings table in sqlite cli, type the following command in sqlite console:

SELECT * FROM readings;

These are the recorded data in database, in sqlite cli:

PRAGMA command

C. Connect database with Node-Red.

First step is to install node-red-node-sqlite package from Node-Red palette:

sqlite package for Node-Red

Next, create a new flow, add all the necessary nodes and create an UI, like in these pictures:

1/2 · Weather station Ul

2/2 · Weather station nodes

The data came from external unit through MQTT messages, as follows:

weather/temperature
weather/humidity
weather/pressure
weather/ライト
weather/uv_level

All these are connected to MQTT IN nodes. The chain from sensors to Mixtile are part of another project that will be documented soon.

The code for function node is this (should be write in tab “On Message”):

var temperature = msg.payload["weather/temperature"];
var humidity = msg.payload["weather/humidity"];
var pressure = msg.payload["weather/pressureAtm"];
var light = msg.payload["weather/light"];
var uv_level = msg.payload["weather/UVsensor"]
if (temperature === undefined || humidity === undefined || pressure === undefined || light === undefined || uv_level === undefined) {
return { payload: "Temp or humi or press or light or UV undefined"}
}
msg.params = [temperature, humidity, pressure, light, uv_level];
return msg;

The code for SQLIte node is this:

INSERT INTO readings (temperature, humidity, pressure, light, uv_level, timestamp) VALUES (?, ?, ?, ?, ?, DATETIME('now', 'localtime'));

The data will be recorded in database with 1 minute rate.

OBS: the whole flow code for Node-Red will be available soon, in download section.

D. Installing Python

Python is used to crate scripts that will configure the ML model. To install Python, we have to follow these steps:

すど update
すど apt install python3
パイソン3 --version --> への verify the installed version

Next, install pip:

すど apt install パイソン3-pip
pip3 --version --> への verify the installed version

Installed version on my setup:

Python3 and pip version

Next, install libraries used to work with machine learning, especially with logistic regression model:

cd /userdata
mkdir For_ML
cd /userdata/For_ML
ピップ install --target=. pandas scikit-learn numpy

Next, create two python files: one used to create and insert a new table, recommandations and another to populate with 5000 values that will be used to train the model. These two tables will be available in Download section after testing.

Structure of recommandations tables is this:

CREATE TABLE recommandations (
id INTEGER PRIMARY KEY AUTOINCREMENT,
temperature REAL,
humidity REAL,
pressure REAL,
ライト REAL,
uv_level REAL,
recommandation TEXT
);

Next, itstall the following libraries used for create a logistic regression model:

ピップ install pandas scikit-learn numpy

In my case, I used other path to install all these libraries, on /userdata partition:

mkdir /userdata/For_ML/
cd /userdata/For_ML/
ピップ install --target=. pandas scikit-learn numpy

Next, install joblib library, used to save the trained model

mkdir /userdata/For_ML/
cd /userdata/For_ML/
ピップ install --target=. joblib

Next, create 3 python files:

  • create_table_recommandations.py --> used to create table used for training model;
  • insert_training_data.py --> used to insert data in the table created above;
  • train_model.py --> used to train the logistic regression model;
  • predict_from_readings.py --> used to run the model to predict the clothing and accessories.

In sqlite database, we will have now 2 tables:

  • readings – used to record the real data from sensors;
  • recommandations – used to train the logistic regression model.

This is the database structure, now:

database tables

Next, we have to fill the table recommandations with data that will be used for train the model; this will be done using “insert_training_data.py “. This script will fill 5000 records in the tables, based on the 15 rules created between the sensors.

1/2 · Display data from recommandation table

2/2 · Data in recommandation training table

Next, We will train the model using train_model.py. This operation take few seconds and the best result, in this case is 66.7%. Fot the moment I will take this value as best value for the training data and training rules.

Model accuracy

At the end, this script will save the model with the name “model.pkl”, in the same director (in my care, in /userdata/For_ML/):

Model location

Next, the forth script, “predict_from_readings.py” is used to predict what clothes and accessories to wear based on real data from “readings” table. This script will be applied only to the last recorded data and will be triggered at 15 minutes or at request from Node-Red.

Prediction result

Now, we have to setup Node-Red to receive the prediction value from Machine Learning model. The “predict_from_readings.py” is set to send the prediction result to Node-Red over http, on /localhost:1880/recommendation link (see this in script). In Node-red We have to add 3 nodes:

http in node in Node-Red

Response function

Node-Red http send-receive config

In this moment We have configured the communication between ML and Node-Red. Next steps are: create an automatic request for predictions, add manual request for prediction and interpretation of recommendations in Node-Red.

Create an automatic request for prediction in Node-Red. To do that add the following nodes in Node-Red:

Manual and automatic trigger for prediction

Now, the ML is finished, the Node-red configuration is finished and the Node-Red UI should look like this:

Weather station Ul with prediction

6. Video demonstration

In this part will be presented some video that demonstrate how this project is working in real life.

A. Video with weather station prototype working; here, the external unit (in the left side of the video) wait until the client is connected (in the right side of the video) and then will send the environmental data with a rate at 30 seconds:

Video with weather station prototype working

B. Video with implementation of weather station with prediction for what should I wear and what accessories should I have when I go out:

Video with weather station interface

C. Video with all Zigbee devices connected to Mixtile Edge2 kit (this video also has sound to exemplify in the interdata from None-Red the fact that the buttons are pressed):

Video with Zigbee devices – with sound!!!

D. Video with Node-Red and Zigbee2mqtt UI:

Video with Node-Red and Zigbee interface

7. Next steps

8. Troubleshooting

Modification of OS partitions to have space for applications

In this part will be presented some video that demonstrate how this project is working in real life.

Almost no space on /dev/root partition

List with large folders from the system

Then, I moved the following folders to /userdata and I created for each folder an symbolic link:

a./var/cache/apt moved to /userdata (send one commnad at the time):

すど mv /var/cache/apt userdata/apt_cache     --> move the folder
すど ln -s /userdata/apt_cache /var/cache/apt --> create the symbolic link
すど chown -R root:root /userdata/apt_cache --> set permisions
すど chmod -R 755 /userdata/apt_cache --> set permitions
すど systemctl restart apt=daily.service --> restart the service for apt

optional, after that, send this to rebuild all necessary files in new location:
すど apt-get update

b./opt moved to /userdata:

すど mv opt /userdata/opt  --> move the folder
すど mount --bind /userdata/opt /opt --> mount the folder /userdata/opt instead /opt
/userdata/opt /opt none bind 0 0 --> add this line in file /etc/fstab

To modify the file fstab より /etc/fstab, send these commands:

すど mount -o remount,rw /  --> make その files writable
すど nano /etc/fstab --> オープン file fstab への edit

The result:

File fstab modified

c. /Downloads moved to /userdata:

mv ~/Downloads /userdata/Downloads    --> move the folder
ln -s /userdata/downloads ~/Downloads --> create the symbolic link

d. /Arduino moved to /userdata (this is specific for Arduino IDE):

mv /home/mpopa/Arduino /userdata/Arduino    --> move the folder
ln -s /userdata/Arduino /home/mpopa/Arduino --> create the symbolic link

e. /.arduino15 moved to /userdata (this is specific for Arduino IDE):

mv /home/mpopa/.arduino15 /userdata/.arduino15    --> move the folder
ln -s /userdata/.arduino15 /home/mpopa/.arduino15 --> create the symbolic link

Obs here: the folder.arduino15 is hidden; for that I have to go in /hone/mpopa and, from UI, selected View and Show Hidden Files.

Now, the folder /userdata and the space on /dev/root should look like this:

1/2 · New space created on root

2/2 · userdata folder with the new folders

Schematics


Schematic of weather station

コード


  • Schematic of weather station JSON
  • Arduino Zigbee bulb example for ESP32 C/C++
  • Arduino Zigbee temperature sensor example for ESP32 C/C++
  • CC2530 Switch Plain text
  • CC2530 Lamp Plain text
  • CC2530 DHT11 sensor Plain text
  • Node-red Weather station flow JSON
  • create_table_recommeandation Python
  • insert_training_data Python
  • train_mode. Python
  • predict_from_readings Python
  • BLE client C/C++
  • BLE server C/C++

クレジット


Mihai Popa

I am working as a test engineer for navigation systems in auto industry. I am passionate about science, loT, ML, MCU programming, and SF movies.
