The Mixtile T-Box 3 is an LTE Cat 1 enabled telematics box with dual CAN buses running Linux 3.10. Comes with an OTA system and Linux SDK.

Technical Specifications

Technical Details
  • ARM926EJ-S MPU @408MHz with integrated 64MB DDR1 memory
  • ARM Cortex-M4 32-bit MCU @120Mhz with 64KB flash
  • 128MB flash storage
  • 2x CAN 2.0B @1Mbps
  • 1x K-Line
  • LTE Cat.1 module, support LTE-FDD: B1/B3/B5/B8, LTE-TD: B34/B38/B39/B40/B42, GSM:900/1800MHz or other bands
  • GNSS module, support GPS/Beidou/GLONASS/Galileo/QZSS/SBAS
  • EAL4+ authentication/encryption chip
  • BLE 5.0 module (optional)
  • 6-Axis MEMS sensor combines a 3-axis gyroscope and 3-axis accelerometer
  • Debugging port
    • 1x SWD
    • 1x UART

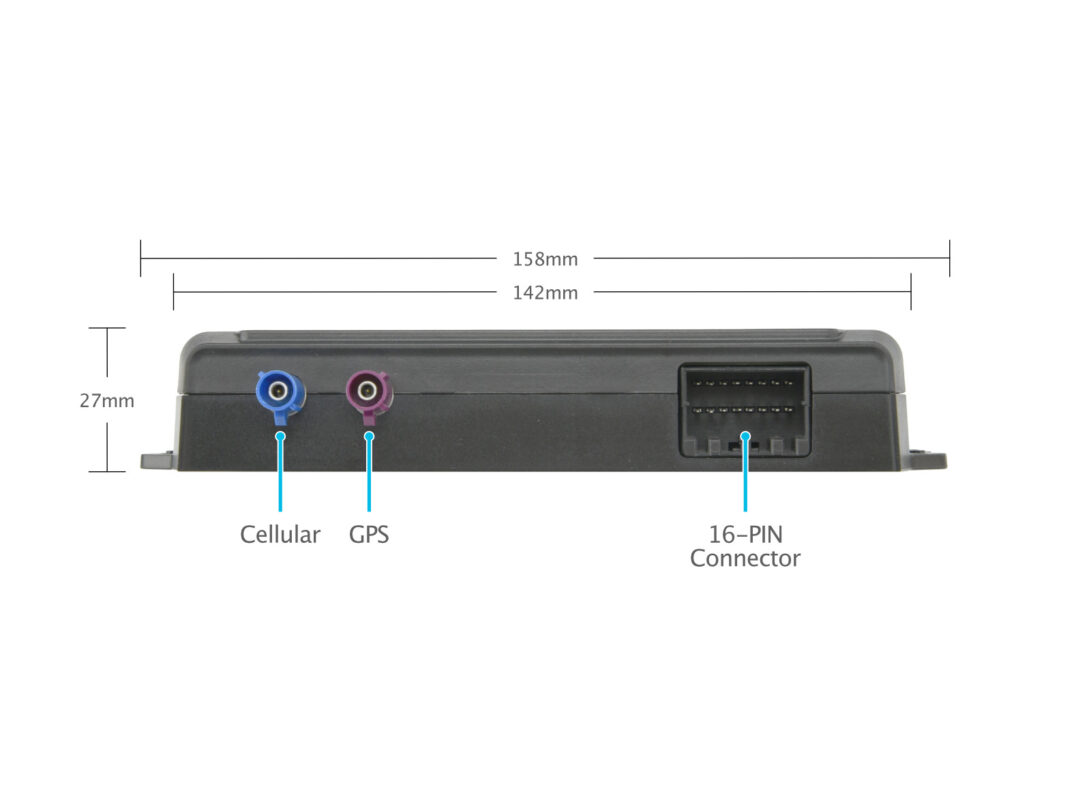

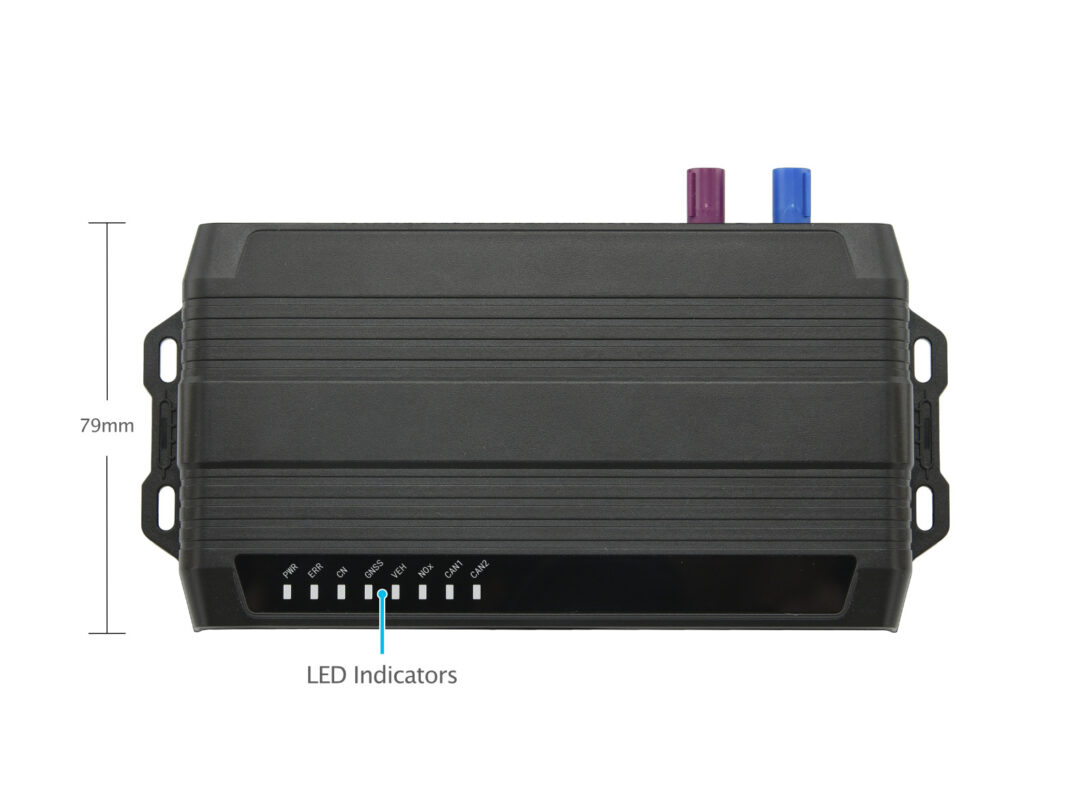

  • 142 x 79 x 27mm
  • 9 to 36V DC power in
  • -30°C to +65°C operating temperature
  • Linux 3.10
Block Diagram
